Precision Balance 5Y.PM

Fast and Stable Measurement
It only takes a second for the balance to display the final measurement result.

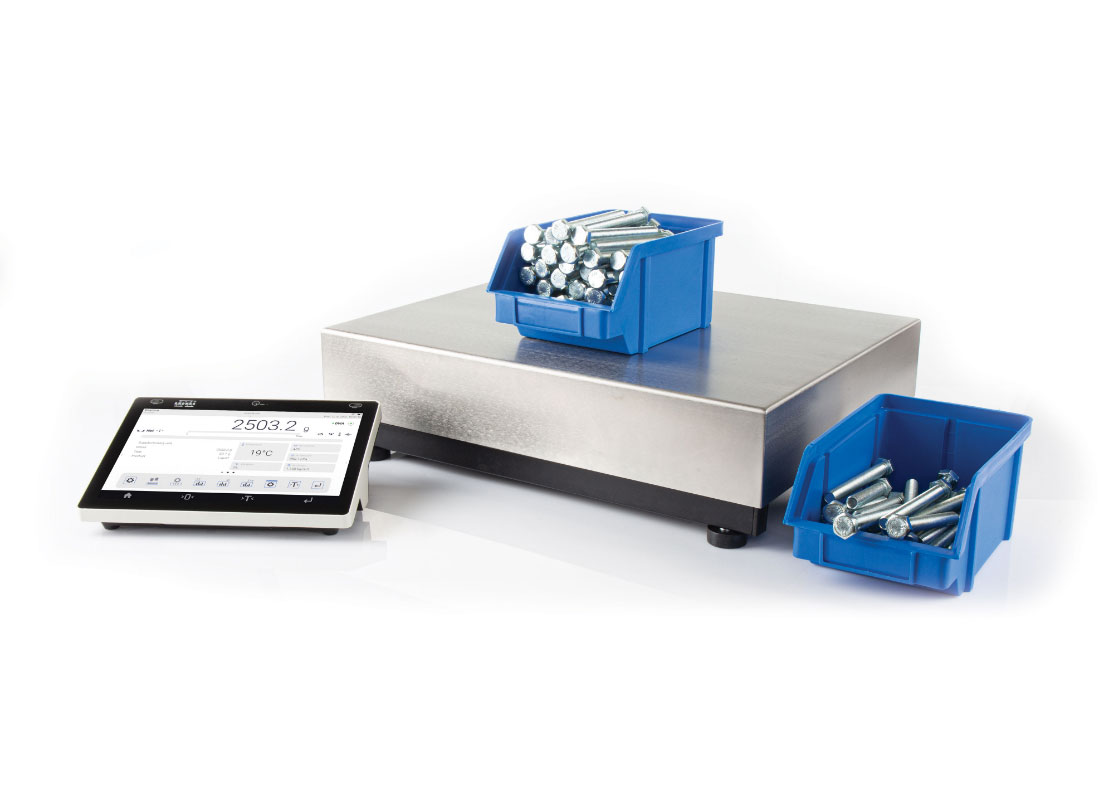

Weighing Heavy Loads with High Accuracy
On the large weighing pan of a PM balance, you can weigh a load of 120 kg with a readability of 0.2 g and second-to-none repeatability.

Minimum Eccentricity Error Over the Entire Range
PM balances can be used to determine the mass of irregularly shaped components with a centre of gravity that is significantly shifted from the weighing pan axis.

Parameter Stability Over Time and After Transport
The mechanical design is resistant and robust, allowing you to maintain the correct metrological parameters after transport and despite long and intensive use.

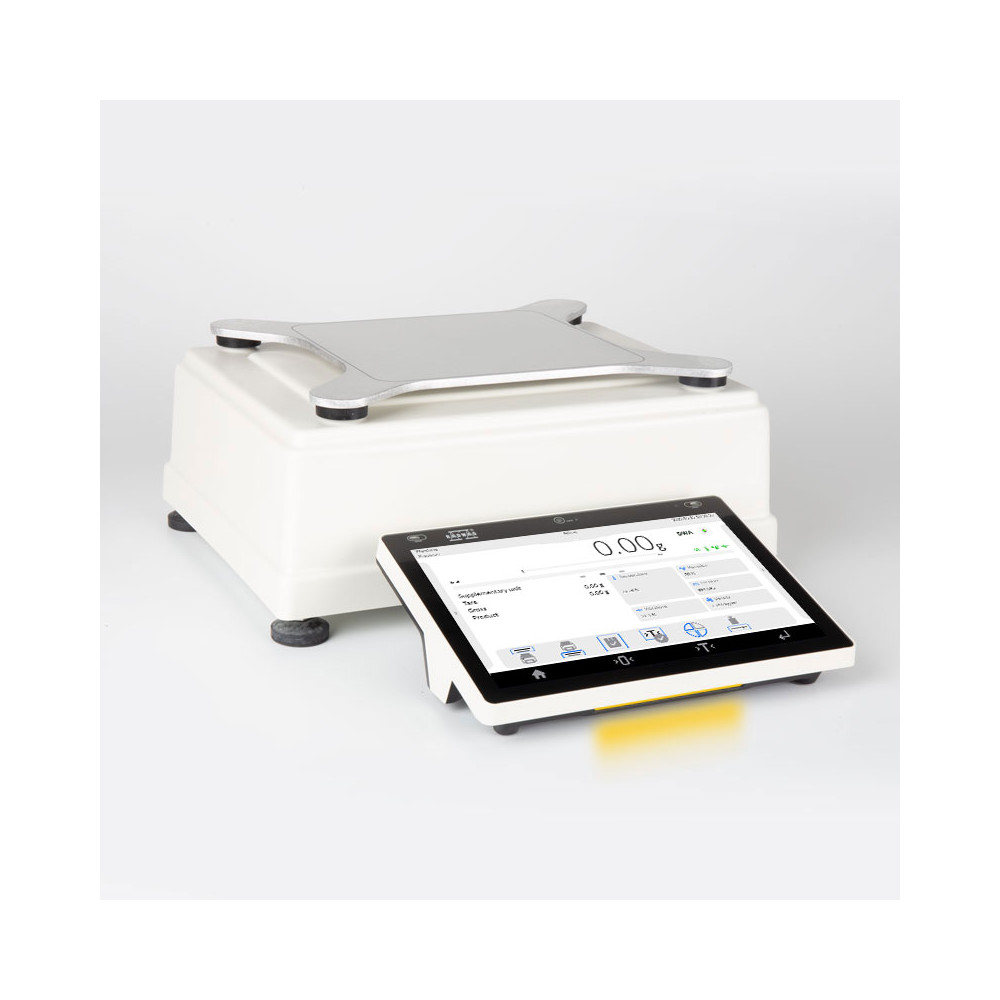

Weighing Pan Dimensions Adapted to the Accuracy of the Balance
Weigh with the highest readability of 0.01 g on the 200 x 185 mm weighing pan and with a readability of 0.2 g on the 500 x 400 mm weighing pan.

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.


- Full data security

- Electronic signatures

- Validations

- Electronic records

- Audit trails

New, lmproved

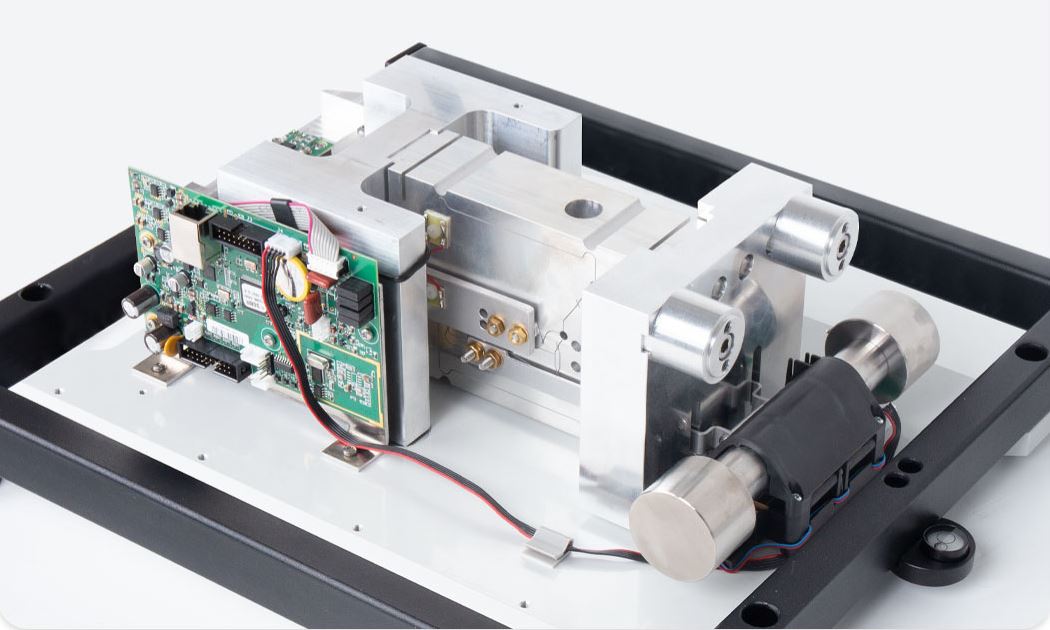

The new, taller and larger MONOBLOCK^® enables the best repeatability and speed
in its class of weighing platforms.

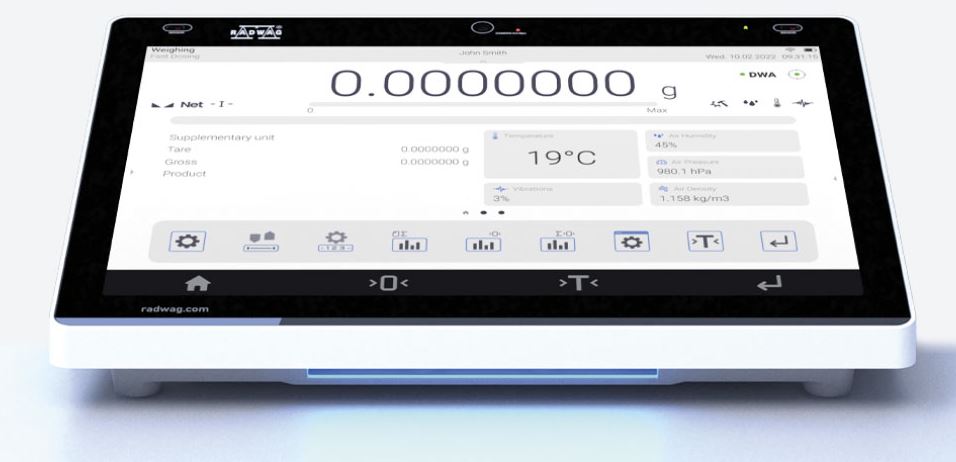

5Y Terminal

With Terminal 5Y you get a 10-inch display, Digital Weighing Auditor, multi-step user verification, ambient light alerts, hotspot, RFID*, live note voice and text notes, voice commands for the balance and handy measurement history within the handy library widgets.

Scale Monitor™

The entire Ellipsis 5Y line is fully compatible with the Scale Monitor™ app, which means you can easily digitize scales and connect them to the cloud.

USEFULNESS

SMART SCALE

CONTROL

The advanced cloud managemnt platform allows you to centralize all your scales and manage them centrally from anywhere in the world from your favorite device.

Register and discover Scale Monitor now as it is a free cloud app- https://scale-monitor.com

Modbus TCP/IP

is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.

A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.
