Moisture Analyzer MA X7.A

MA X7.A series

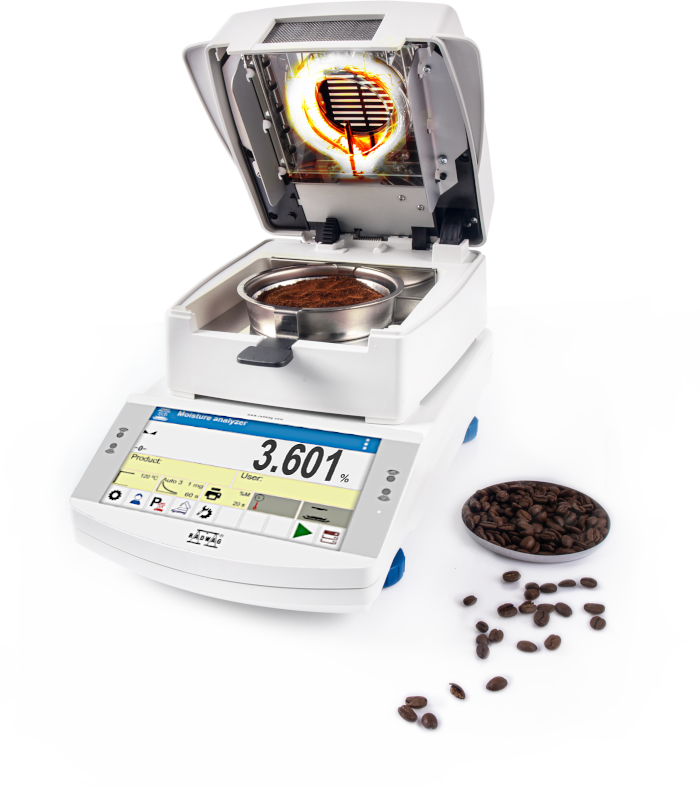

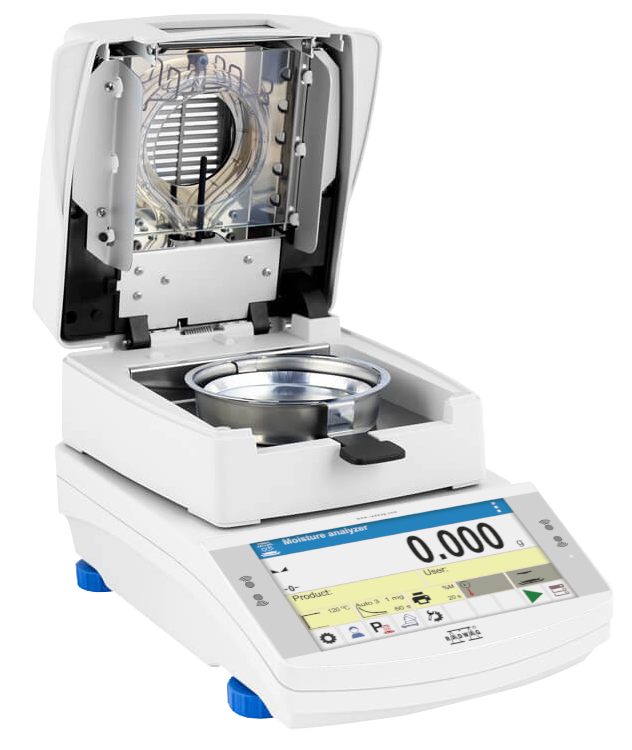

The MA X7.A series is equipped with innovative system: the drying chamber can be opened and closed automatically using button or proximity sensors.

Such solution allows:

• Maintaining moisture analyzer clean – operator does not touch moisture analyzer’s housing.
• Removing any shocks caused by manual closing of the chamber – the chamber closes automatically and always with the same intensity.
• Achieving high repeatability of opening and closing the drying chamber.
• Enhancing drying process automation.
• Enhancing safety of operation by eliminating contact with hot components of drying chamber.
• Improving operation ergonomics.

Capacity and temperature

MA.X7.A maximum capacity ranges from 50g/0.1mg to 210g/0.1mg. Moisture content is measured with the 0.01% accuracy (0.001 % for samples bigger than 1.5g). The maximum drying temperature is 160˚C (there is an optional  moisture analyzer with 250˚C maximum temperature).

An additional element for moisture analyzers that improves their functionality is a water vapour permeability determination set used in tanning industry for determining hygienic properties of leather.

The results

The results obtained using the moisture analyzer (the final result of the drying process):

• % M – the mass loss in %; displays the mass change recorded during the drying process, expressed as a percentage,
• % D – the dry mass obtained during the drying process, expressed as a percentage; the result is the portion of the sample that remains on the weighing pan after the moisture has evaporated,
• % R – the ratio of moisture content to dry mass, obtained during the drying process, expressed as a percentage; the result is the portion of the sample that evaporated during the drying process,
• g – the sample mass after drying.

Scale Monitor™

USEFULNESS

SMART SCALE

CONTROL

Advantages of the X7 series moisture analyzers:

• Automatic opening and closing of the drying chamber,

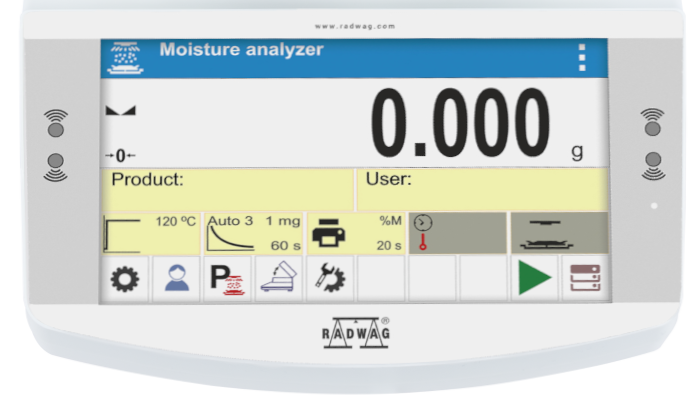

• Colored 7" capacitive surface touchscreen,
• Modern user interface,
• Simple and intuitive operation,
• Freely programmable display elements,
• Internal adjustment (automatic),
• Drying profiles (standard, gentle, staged, fast),
• Ending the drying process (automatic, time-controlled, manual),
• Printing GLP/GMP protocols,
• Repeatable and non-standard applications,

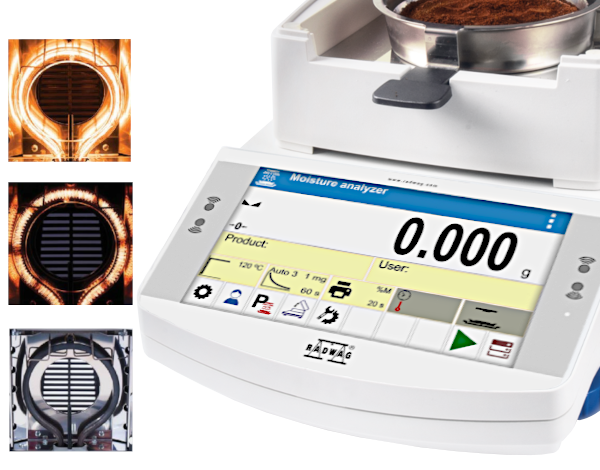

• Optimization of processing time thanks to halogen lamps.

Databases

Information system of X7 series moisture analyzers is based on 8 databases, allowing many users to operate product database comprising many samples. Collected measurements may be subjected to subsequent analysis.

Collected data is registered in 8 databases:

• Products (up to 5000 products)
• Users (up to 100 users)
• Packaging (up to 100 packagings)
• Customers (up to 1000 customers)
• Drying programs (up to 200 drying programs)
• Drying process reports (up to 5000 drying process reports)
• Ambient conditions (up to 10000 records)
• Weighings (up to 50000 records)

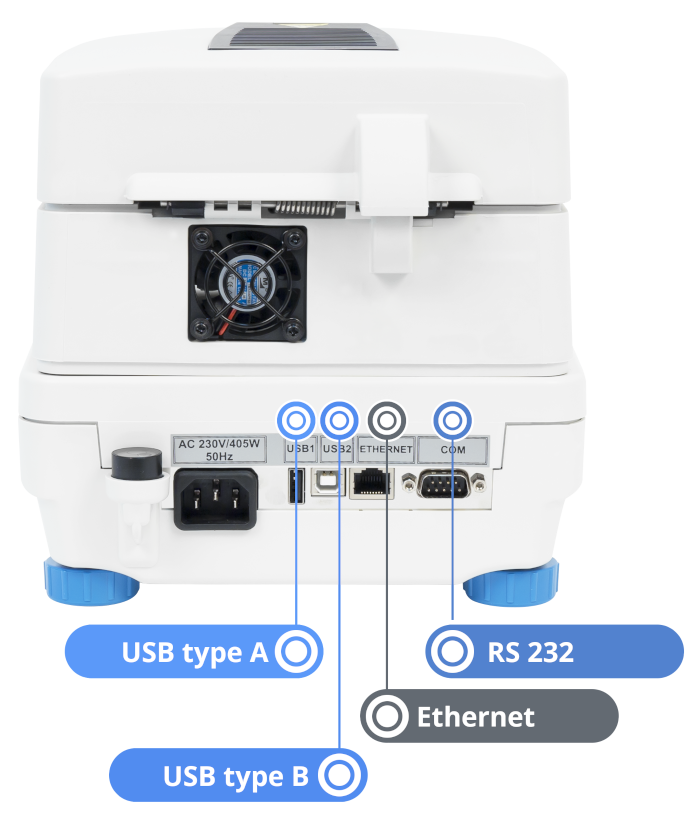

Communication Interfaces

The functionality of MA X7 moisture analyzers can be expanded using the following communication interfaces: USB-A, USB-B, RS 232, Ethernet, Wi-Fi^®.

Cooperation with E2R allows for external data management which in turn increases the efficiency and results to the maximum.
