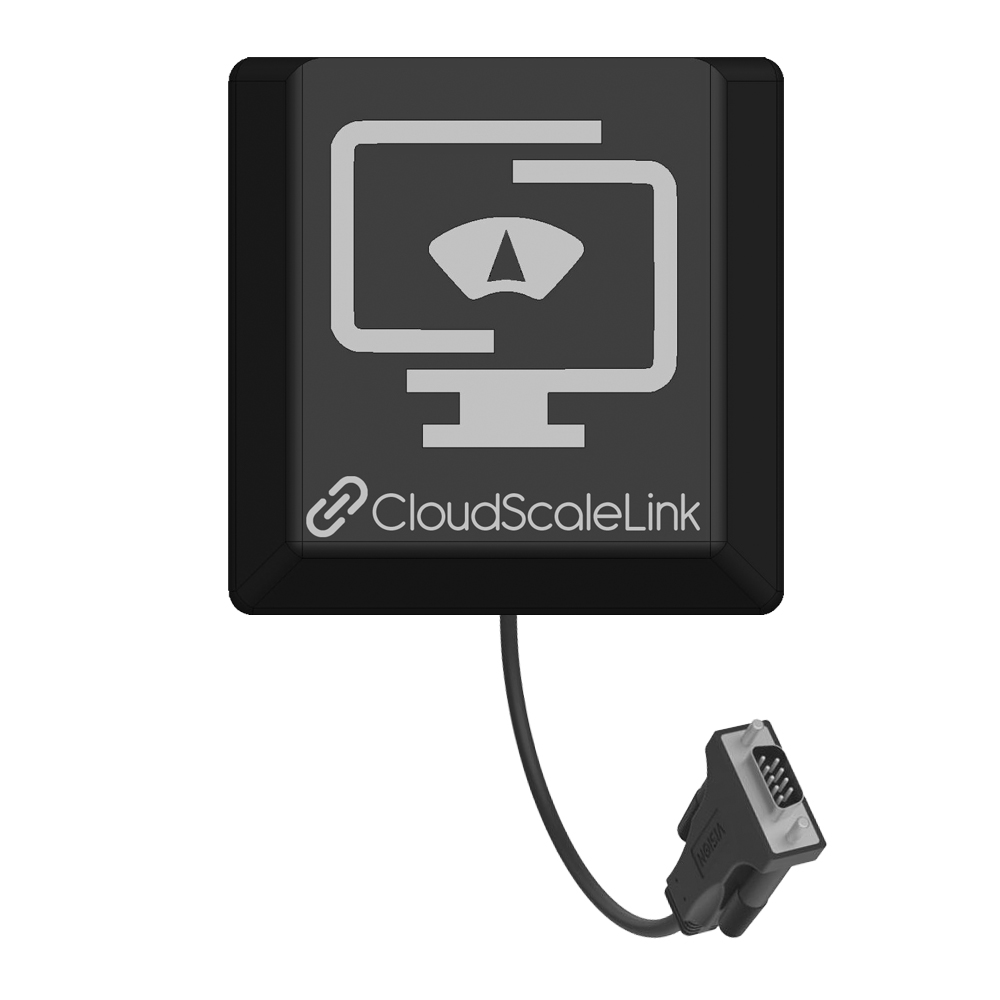

Miniature RS-232 <=> Ethernet converter with optional Wi-Fi 2.4G/5.0GHz that supports MQTT, ModBus, TCP/IP and HTTP/REST connection to any device that has an RS232 interface such as scales, network analyzers, sensors etc…

Connections
RS-232 cable 0.3 m long with male DB9 connector
network connection with RJ45 connector - 10/100BaseT auto-MDIX

Properties
input voltage: 5 to 24Vdc; the adapter is not included
connector: male 5.5/2.5 mm
maximum consumption: 250 mA @ 5 Vdc
dimensions: 70x70x34 mm LxWxH
weight: 112 g

Accessories
adapter - CSL-A12
optionally also available version with RS485 interface - CSL-T485
optional WIFI module -2.4/5.0Ghz a/b/g/n - freely upgradeable at any time

Possible software version updates via Ethernet/WIFI
Extremely fast and easy setup via the free CSLTools - setup in less than 30 seconds or via the integrated web server
The free CMP cloud platform allows you to view and configure all your interfaces from anywhere you have a web browser and access to the Internet
